INTENDED USE

PEC ducts are used for the construction of underground duct system for fiber optic and copper cables in the telecommunication‘s long distance, junction, primary and secondary networks.

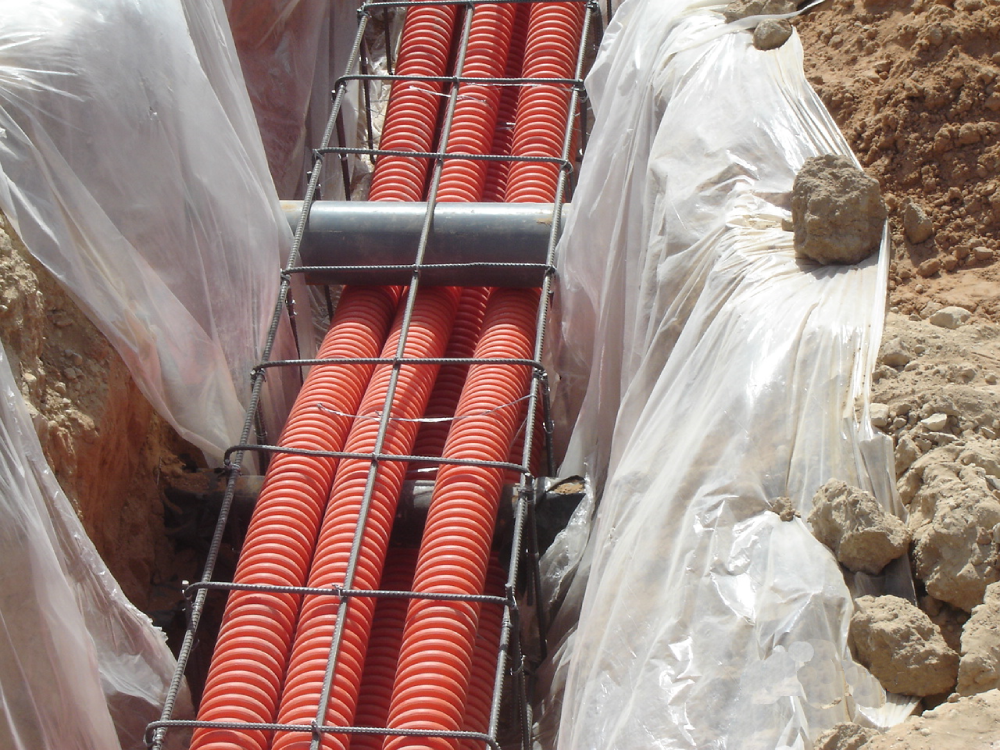

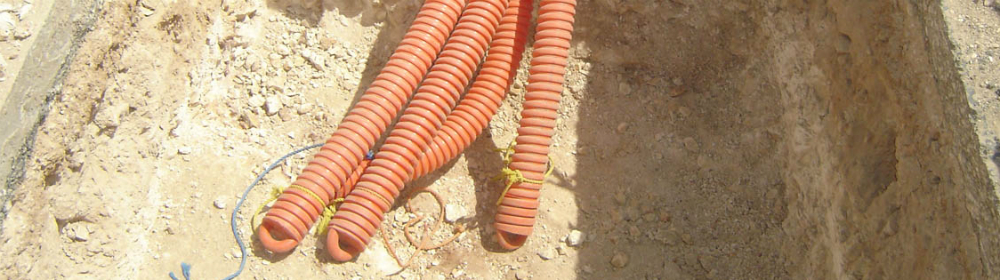

PEC ducts are used to provide a single and continuous duct laying operation from one point to another, e.g., manhole to manhole, without cut. It can be laid directly into trench at standard depths even without sand bedding. Concrete encasement is normally not required.

LONG TERM PERFORMANCE REQUIREMENTS

PEC ducts and its accessories suppuled in compulance with this specification, shall be capable of withstanding the typical service conditions of the Kingdom of Saudi Arabia for a minimum period of fifty (50) years without detriment to the operation and maintenance characteristics of the product.

PEC ducts and its accessories shall be designed, manufactured and packaged so that its physical or operation and maintenance characteristics shall not degrade when exposed to the environmental conditions of Saudi Arabia, and the expected environmental conditions during storage and transportation outside of the Kingdom.

The environmental conditions of Saudi Arabia may include ambient air temperature variations from -10ºC to +55ºC In addition direct solar radiation is known to increase the temperature of some outside plant to +70º C.

ASSOCIATED SPECIFICATIONS

ASTM F 405 Standard Specification for Corrugated Polyethylene Pipe and Fittings.

ASTM D 2412 Standard Test Method for Determination of External Loading Characteristics of Plastic Pipe By Parallel-Plate Loading.

ASTM D 1505 Standard Test Method for Density of Plastics.

ASTM D 882 Standard Test Method for Tenslie Properties of Plastics.

ASTM D 1693 Standard Test Method for Environmental Stress-Cracking of Ethylene Plastics.

ASTM D 1603 Test Method for Carbon Black in Olefin Plastics.

ASTM D 2122 Test Method for Determining Dimensions of Thermoplastic Pipes & Fittings.


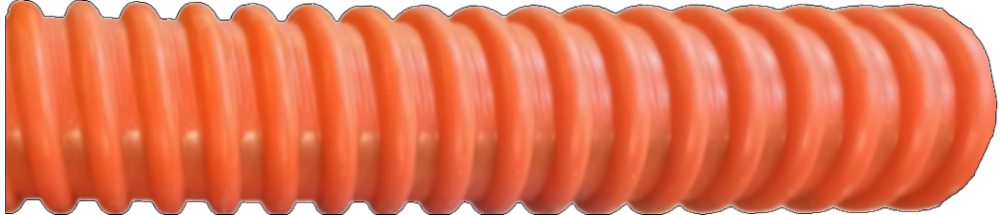

Design Description Dimension Application
5B

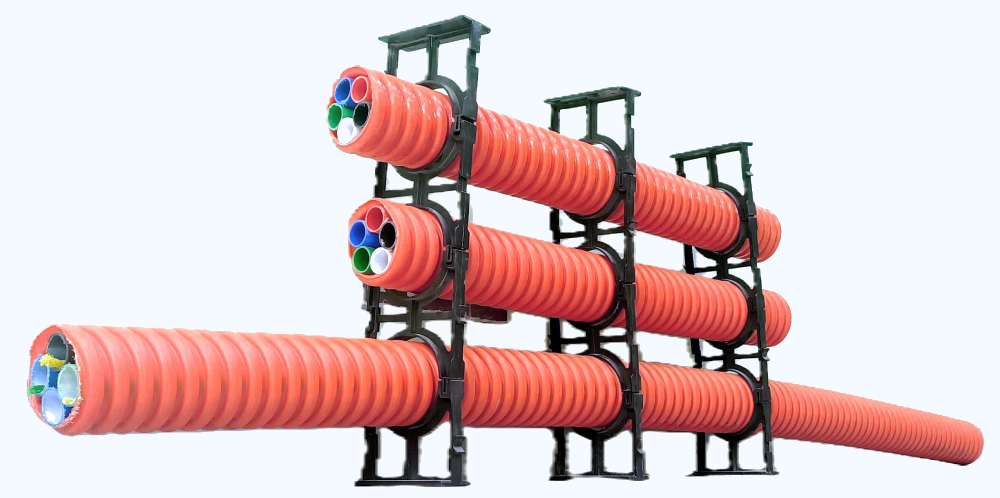

PEC Duct, 110 mm OD, with 5-33 mm sub duct OD, Orange color

110 mm Fiber Optic Cable
Sub Duct

33 mm outside diameter sub duct

33 mm
Steel Reel

Standard length is 300 meter or 500 meter,

Each length of PECD shall be packaged in individual steel reels. The reels shall be sufficient to protect the PECD from damage during handling, storage and transportation.


Design Description Dimension Application
3D

PEC Duct, 110 mm OD, with 3-42 mm sub duct OD, Orange color

110 mm Fiber Optic Cable
Sub Duct

42 mm outside diameter sub duct

42 mm
Sub Duct

Standard length is 300 meter or 500 meter,

Each length of PECD shall be packaged in individual steel reels. The reels shall be sufficient to protect the PECD from damage during handling, storage and transportation.


Design Description Dimension Application
E0

PEC Duct, 110 mm OD, without sub duct 'Empty', Orange color

110 mm Cobber Cable
Sub Duct

Standard length is 300 meter or 500 meter,

Each length of PECD shall be packaged in individual steel reels. The reels shall be sufficient to protect the PECD from damage during handling, storage and transportation.


Design Description Dimension Application
3C

PEC Duct, 77 mm OD, with 3-28 mm sub duct OD, Orange color

77 mm Fiber Optic Cable
Sub Duct

28 mm outside diameter sub duct

28 mm
Sub Duct

Standard lemgth up to 1,000 meter,

Each length of PECD shall be packaged in individual steel reels. The reels shall be sufficient to protect the PECD from damage during handling, storage and transportation.


Design Description Dimension Application
5B

PEC Duct, 77 mm OD, with 3-28 mm sub duct OD, Orange color

77 mm fiber and Cobber Cable
Sub Duct

Standard length up to 1,000 meter.

Each length of PECD shall be packaged in individual steel reels. The reels shall be sufficient to protect the PECD from damage during handling, storage and transportation.


Design Description Application
Sub Duct

42 mm outside diameter sub duct

Fiber Optic Cable
Sub Duct

Standard length up to 1,000 meter.

Each length of PECD shall be packaged in individual steel reels. The reels shall be sufficient to protect the PECD from damage during handling, storage and transportation.


Design Description Application
Sub Duct

32 mm outside diameter sub duct.

Fiber Optic Cable
Sub Duct

Standard length up to 1,000 meter.

Each length of PECD shall be packaged in individual steel reels. The reels shall be sufficient to protect the PECD from damage during handling, storage and transportation.


Design Description Application
Sub Duct

Micro duct, 32 mm outside diameter with 3 x 13 mm micro duct 1 Black color 2 Orange color.

Fiber Optic Cable
Sub Duct

13 mm outside diameter sub duct

13 mm
Micro Duct

Standard length up to 1,000 meter.

Each length of PECD shall be packaged in individual steel reels. The reels shall be sufficient to protect the PECD from damage during handling, storage and transportation.



Design Description Dimension

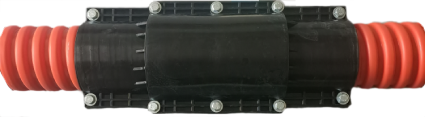

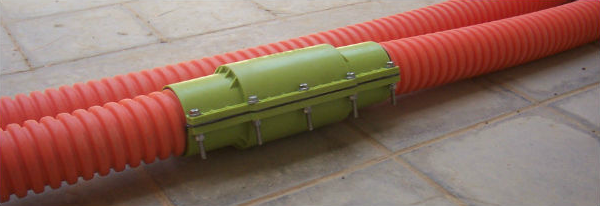

JC

To enclose and secure PECD joints, Green or Black

420 mm Length
Sub Duct Coupling

42 mm & 32 mm sub duct coupling

170 mm length

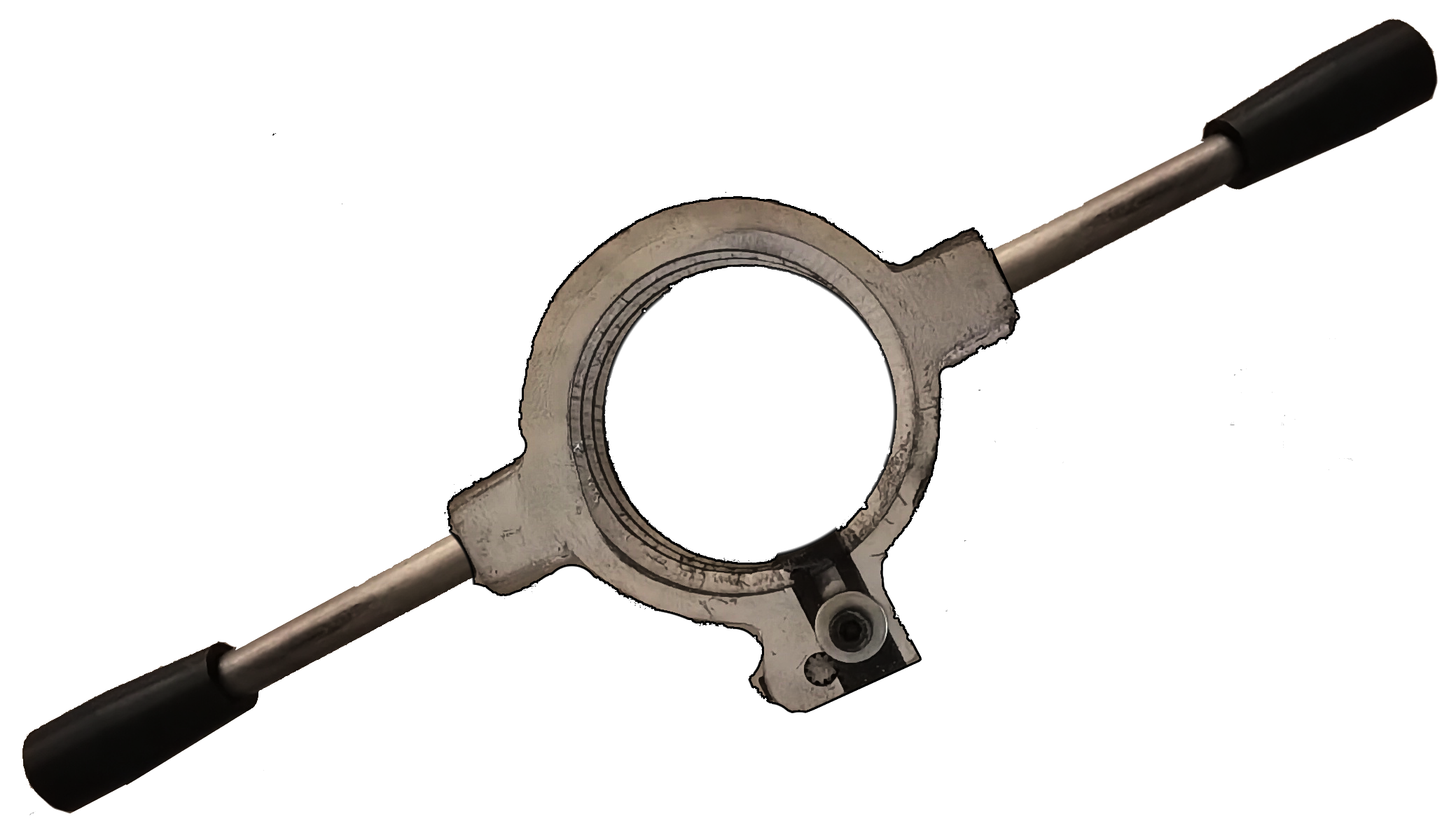

Final

Design Description
EndCap

To close both ends of 110 mm PEC Duct 'all types'.

End Cap

Design Description
EndCap

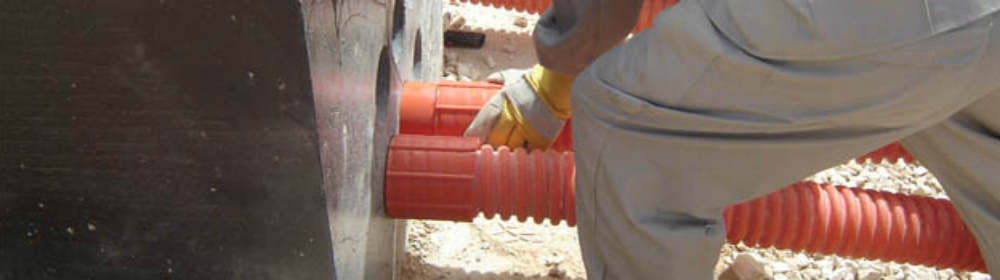

To connect the main PEC Duct pipe to manhole or hand hole's duct entry holes.

End Cap

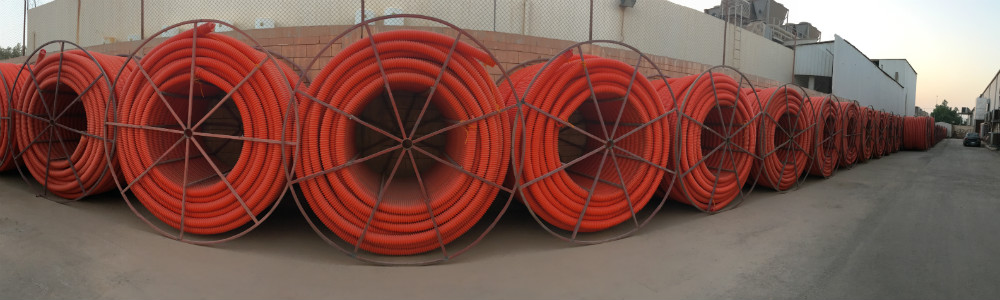

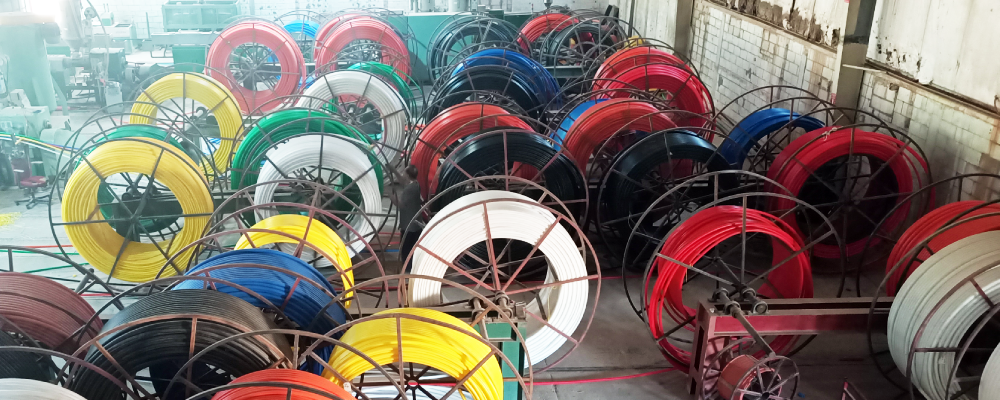

PEC PANORAMA

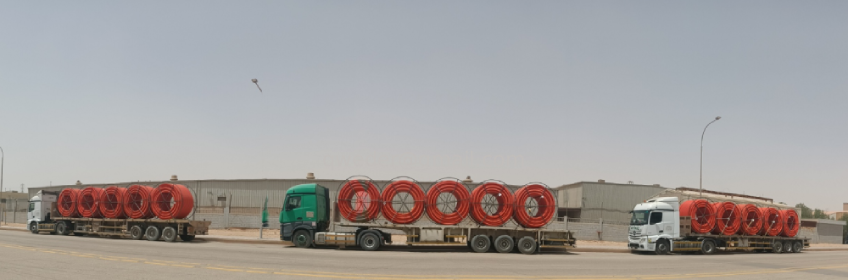

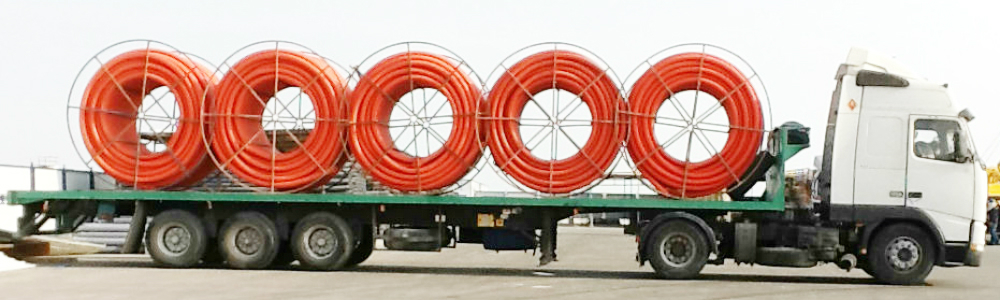

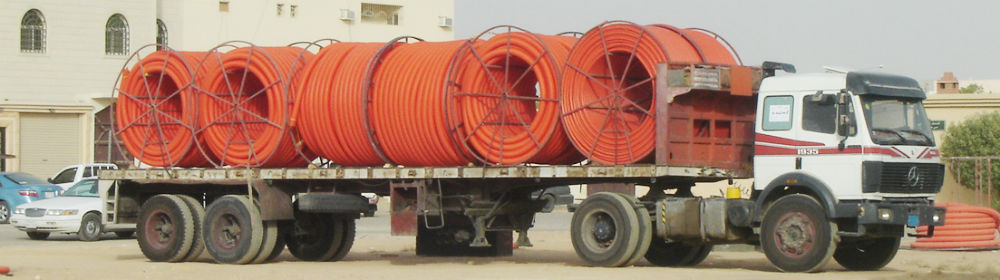

5 Reel Truck
↑ 5 reels x 500 meter per reel = 2,500 meter per truck ↑

5 Reel Truck
↑ 6 reels x 300 meter per reel = 1,800 meter per truck ↑
